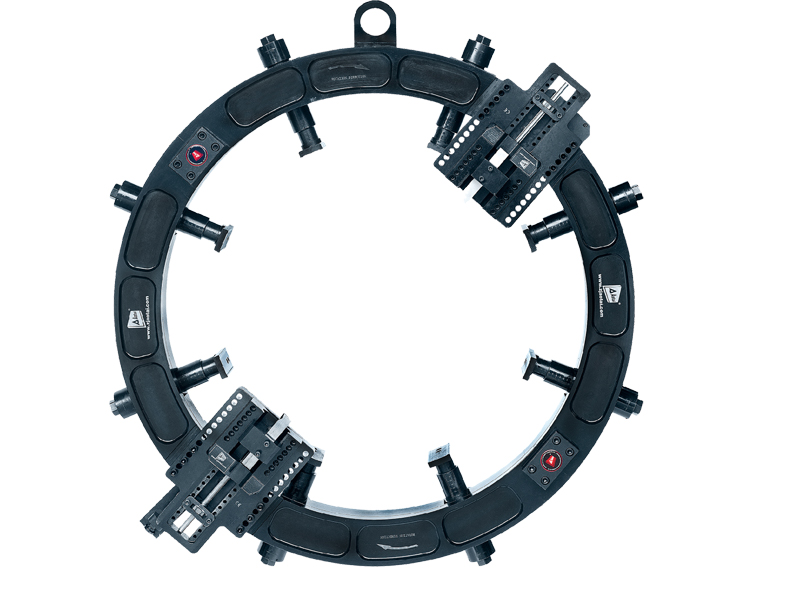

Heavy duty split frame pipe cutting and beveling machine

Aotai Heavy duty split frame machine, designed to cut, bevel, single point, counterbore and face on the Heavy wall pipe and flanges. Ideal for wide diameter range 12” in the one machine, and 8 models are available from 12” to 120”.
Range for Pipe OD 12"-120"

online service

Tel:0086-577-86808798

OVERVIEW:

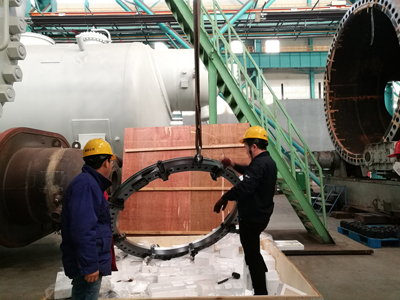

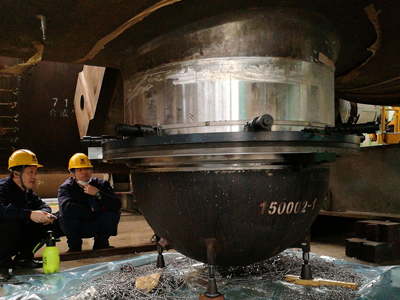

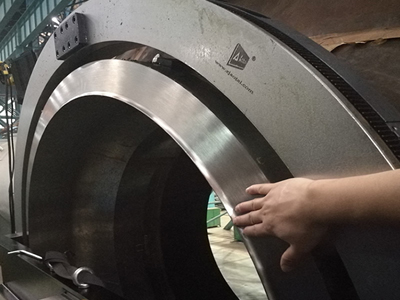

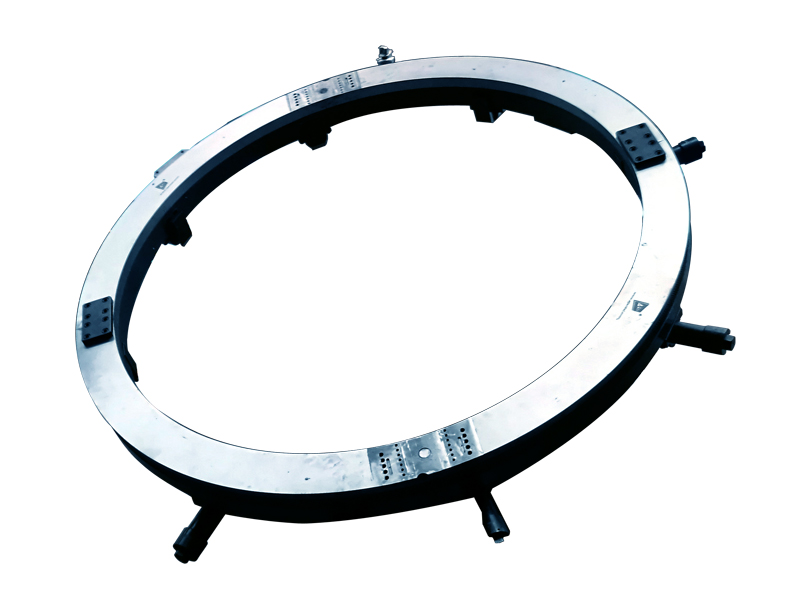

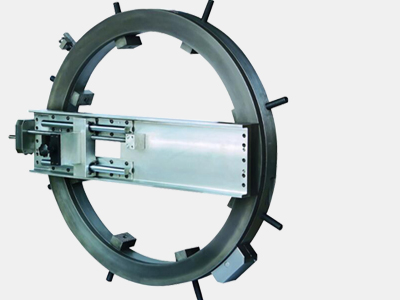

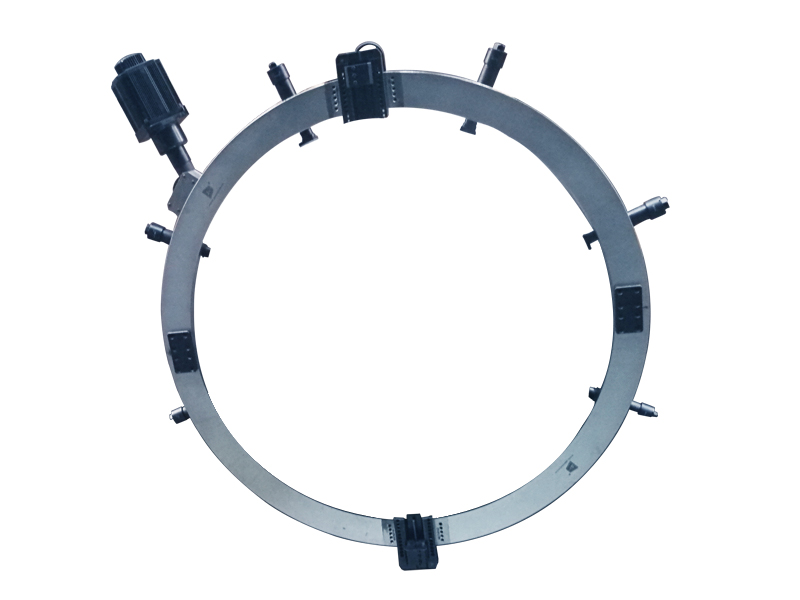

Heavy duty split frame pipe cutting and beveling machine, designed to cut, bevel, single point, counterbore and face on the Heavy wall pipe and flanges. Ideal for wide diameter range 12” in the one machine, and 8 models are available from 12” to 120”. It is a portable pipe cutting and beveling machine tools of clamshell style. ability to split in half at the frame, easy to install on the pipe line. It is comprehensive used in pipework of oil, gas, petroleum, chemical, boiler, nuclear power, and power supply construction.


FEATURES

1、Used for heavy wall pipe cutting and beveling, and flange facing

2、8 models, Working range for pipe OD 12”-120”.

3、Ideal for wide diameter range 12” in the one machine.

4、Out-mounted style, clamping by multipoint jaws.

5、Split frame technology, easy to install on the pipeline.

6、Cold cutting and beveling, don’t influence the pipe’s material.

7、Auto feed, cutting and beveling at the one time, cost effective.

8、Varity of beveling shape: “U”,“V”,“J”, double “V”, compound bevels.

9、Electric. pneumatic, numerical controller and hydraulic drive options are available.

10、Non-standard model can be customized.


CAPABILTY

1、Pipe cut off

2、Pipe end beveling

3、Pipe facing

4、Cutting and beveling

5、Compound beveling

6、Counterboring

7、Flange facing

8、Grooving

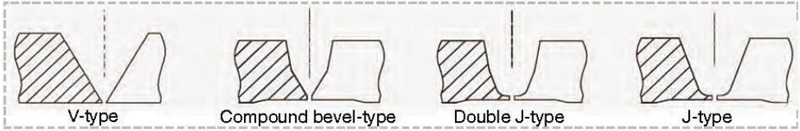

BEVELING SHAPE



*other beveling shape, angle and pipe material, please declare before order

SPECIFICATION

Model Pipe Capacity   OD Wall thickness Rotating
Electric Pneumatic NC Electric Hydraulic mm inch mm rpm
ISD-2412H ISF-2412H SKD-2412H HYD-2412H Ф305-610   12"-24" ≤110 14
ISD-3624H ISF-3624H SKD-3624H HYD-3624H Ф610-914   24"-36" ≤110  11
ISD-4836H ISF-4836H SKD-4836H HYD-4836H Ф914-1240 36"-48" ≤110  9
ISD-6048H ISF-6048H SKD-6048H HYD-6048H Ф1220-1524   48"-60" ≤110  5
 ISD-7560H ISF-7560H SKD-7560H HYD-7560H Ф1524-1910   60"-75" ≤110  4
ISD-9075H  ISF-9075H SKD-9075H HYD-9075H Ф1910-2290   75"-90" ≤110  4
 ISD10590H ISF-10590H SKD-10590H HYD-10590H Ф2290-2680   90"-105" ≤110  3
 ISD-120105H ISF-120105H SKD-120105H HYD-120105H Ф2680-3050   105"-120" ≤110  2
Above parameters just for reference only, not acceptance criteria



POWER SUPPLIES

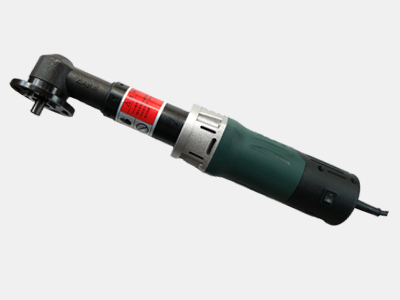

Electric:

Convenient power supply
Stable Performance
Popular choice
Electric requirement:220-240V 1PH 50/60HZ
Power:1.7KW,2.4KW
Double motor for big model or heavy duty

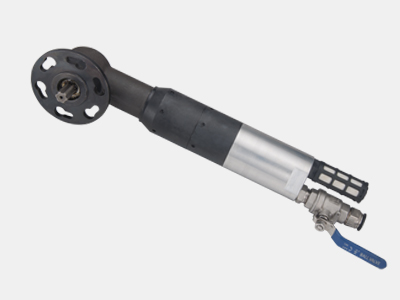

Pneumatic:

Explosion Proof
Stable Performance
Easy to maintenance
Air requirement:1500-3500L/min @0.63-0.8Mpa
Power:3HP,4HP
Double motor for big model or heavy duty

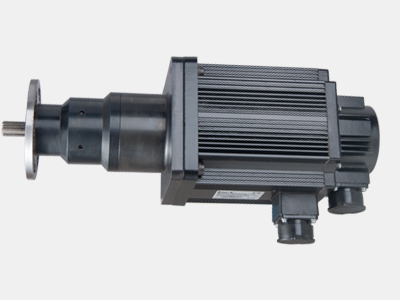

NC:

Powerful drive, High efficiency
Low noise ,Stable Performance
Ideal for heavy wall thickness & large size pipe
Electric requirement: 230V 1PH 50/60Hz;
380V 3PH 50/60Hz
Power:2.0KW or 3.0KW
Double motor for big model or heavy duty

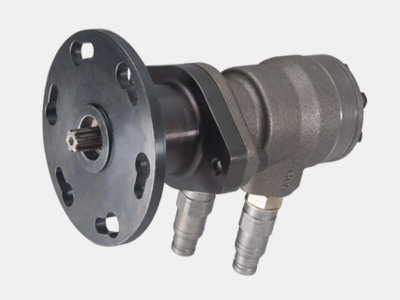

Hydraulic:

Powerful drive, High efficiency
Stable Performance, Low noise, Anti-explosion
Ideal for heavy wall thickness & large size pipe
Hydraulic requirement:28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated Pressure:13MPa
Rated flow:28L/min
Max.Torque:380NM




TOOLING
Form Style and Insert Style
HSS, HSS Co, Carbide
Make more tooling on demand

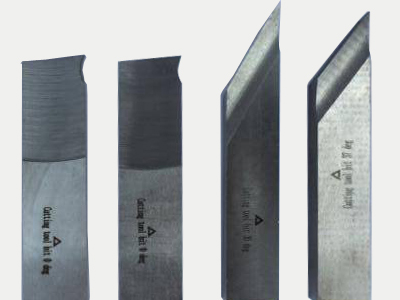

Form Style

 Material:M42 and M35

Type:Sever,bevel,double bevel,

compound bevel,counterbore

Angle:0°,30°,37.5°, Double 30°,37.5°+10°
Size:90mm,150mm,200mm

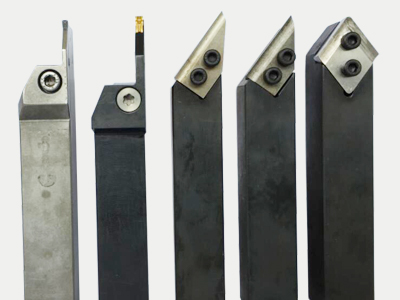

Insert style
Material:Holder HSS ;
Insert: HSS-Co or Carbide
Type:Sever,bevel,double bevel,compound bevel,
Angle:0°,30°,37.5°, Double 30°,37.5°+10°
Size: 90mm,150mm,200mm


TOOL SLIDE

More Practical, More Ways, More Solutions

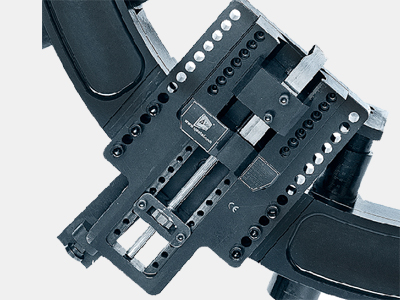

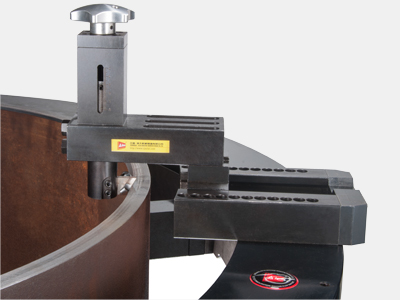

Heavy duty Tool Slide
Used for conventional pipe
Wall thickness of single point:30mm
Wall thickness of multi point:110mm
Radial travel:305mm

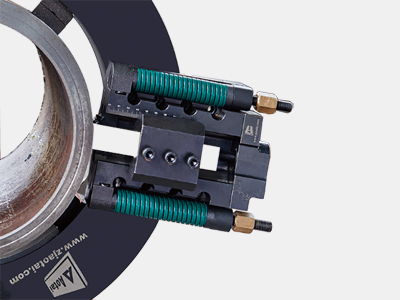

OD Tacking Slide
Solution for out-of-round pipe
The max. wall thickness:110mm
Radial travel:110mm

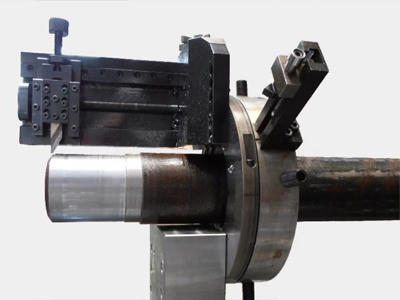

Counterbore slide
Used for pipe inside diameters.
Radial travel:110mm
Axle travel:100mm
Surface turning slide
Surface turning, removal anti-corrosion layer
Radial travel:110mm
Axle travel:200mm

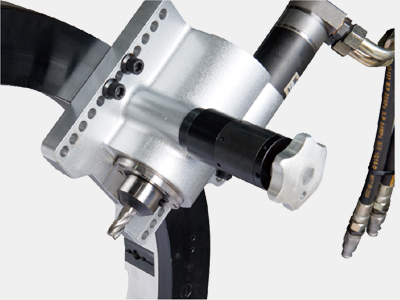

Drilling and Milling slide
Solution for problem of stress damage to the tool
Improve the cutting efficiency
Improve the safety factor
Bridge slide
Single point heavy wall machining
Flange facing
Counterboring
