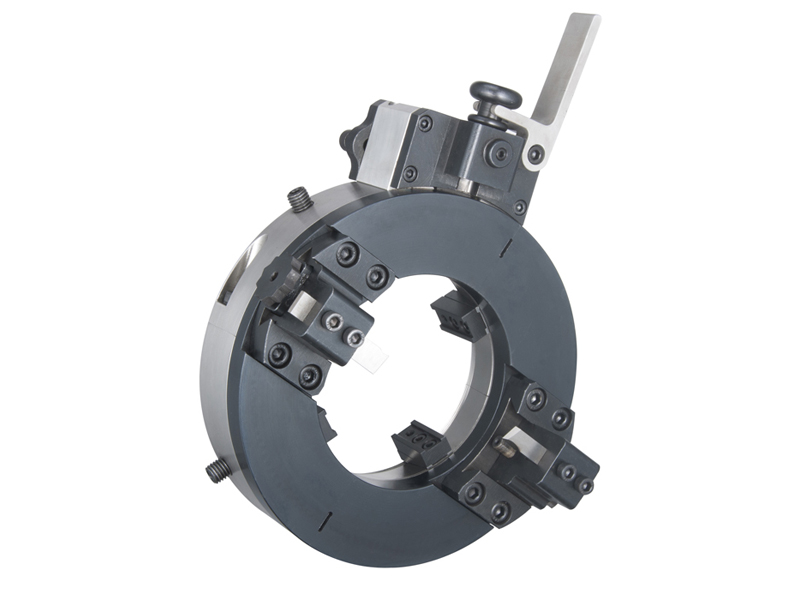

Mini split frame pipe cutting and beveling machine
Mini split frame pipe cutting and beveling machine used by pipefitters and welders in weld preparation for industrial pipe. smartly designed, ability to split in half at the frame, easy to install on the pipe line.
Range for pipe OD 12.5-152.4mm

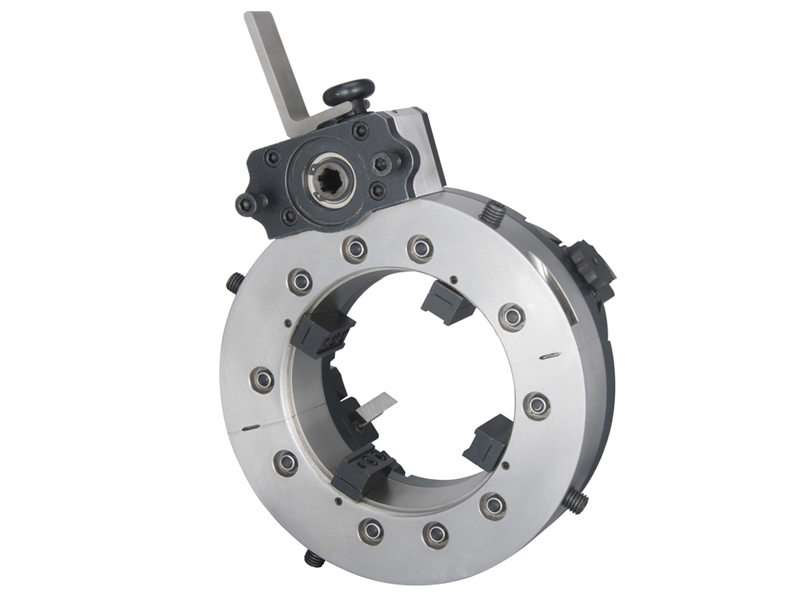

Mini split frame pipe cutting and beveling machine used by pipefitters and welders in weld preparation for industrial pipe. smartly designed, ability to split in half at the frame, easy to install on the pipe line. This series product is the most small and compact split frame clamshell style, small size, avoid interference, especially suitable for tight places, such as exhaust pipe, elbow, pipe racks, etc., mainly used in boiler, power generation, oil,gas and shipbuilding. Nine models are available in 0.5 or 1 inch (25.4mm) increments, with additional sizes available by special order.

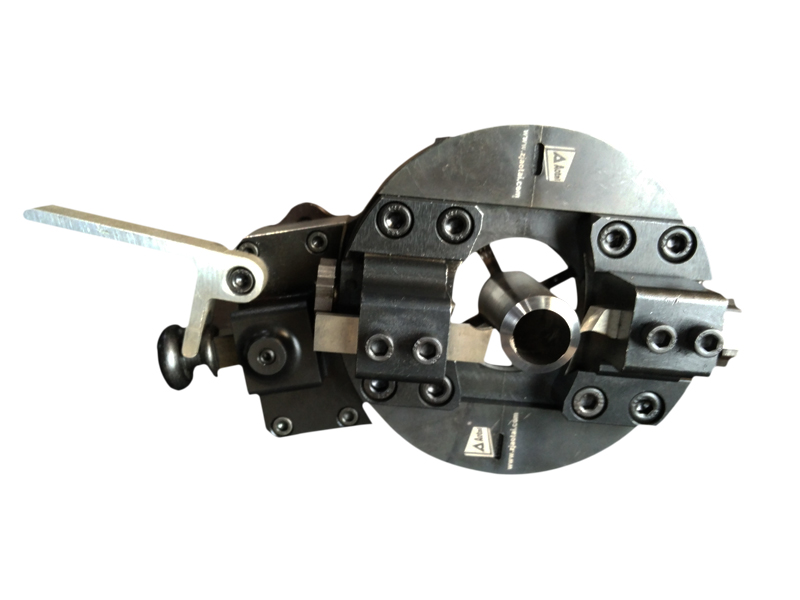

FEATURES
1、Cutting, beveling and counterboring
2、Clever designed, small size, avoid interference.
3、Aluminum body, light weight, one - handed operation.
4、Out-mounted style, clamping by multipoint jaws.
5、Split frame technology, easy to install on the pipeline.
6、Cold cutting and beveling, don’t influence the pipe’s material.
7、Auto feed, cutting and beveling at the one time, cost effective.
8、Varity of beveling shape: “U”,“V”,“J”.
9、Non-standard model can be customized
10、9 models are available in pipe OD 1/2”-6”
11、Electric. Pneumatic drive options are available.
CAPABILTY

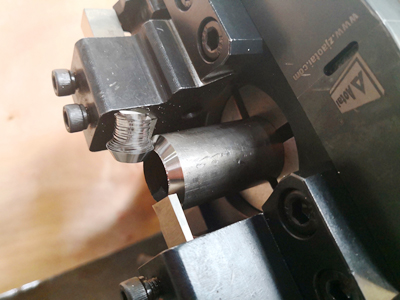

1、Pipe cut off

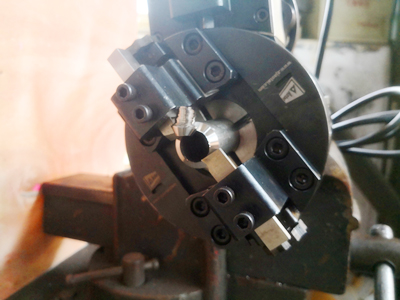

2、Pipe end beveling

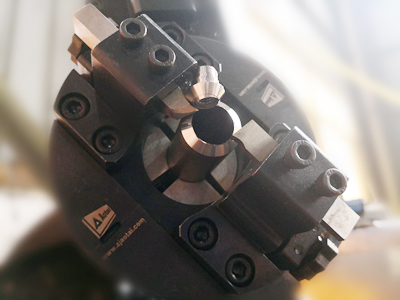

3、Pipe facing

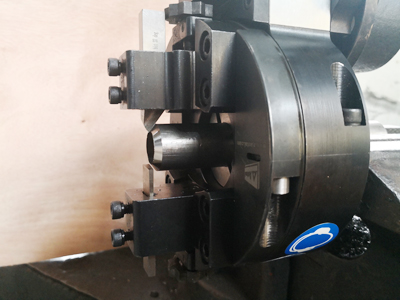

4、Cutting and beveling
BEVELING SHAPE
*other beveling shape, angle and pipe material, please declare before order
| Model | Pipe Capacity OD | Wall thickness | Rotating | ||
| Electric | Pneumatic | mm | inch | mm | rpm |

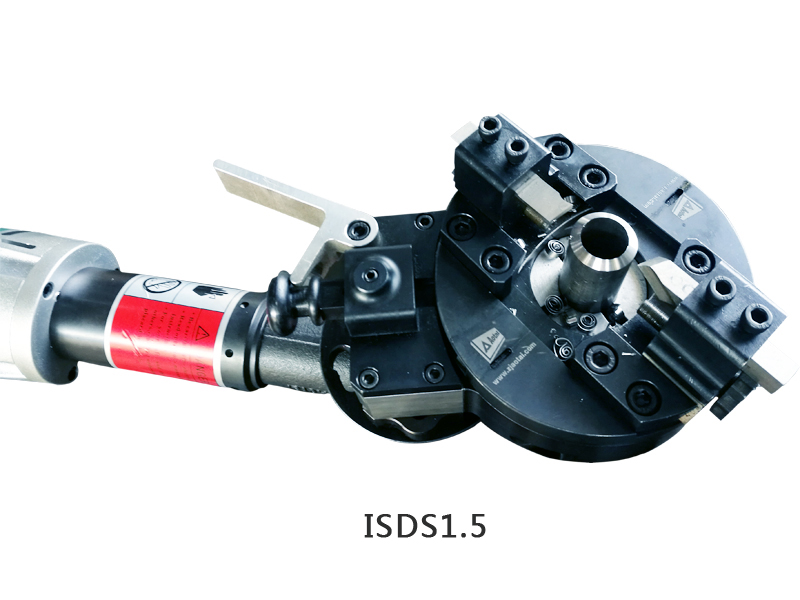

| ISDS1 | ISFS1 | Ф12.5～25.4 | 0.5"～1" | ≤15 | 34 |
| ISDS1.5 | ISFS1.5 | Ф25.4～38.1 | 1"～1.5" | ≤15 | 24 |
| ISDS2 | ISFS2 | Ф38.1～50.8 | 1.5"～2" | ≤15 | 23 |
| ISDS2.5 | ISFS2.5 | Ф50.8～63.5 | 2"～2.5" | ≤15 | 23 |
| ISDS3 | ISFS3 | Ф63.5～76.2 | 2.5"～3" | ≤15 | 23 |
| ISDS3.5 | ISFS3.5 | Ф76.2～88.9 | 3"～3.5" | ≤15 | 23 |
| ISDS4 | ISFS4 | Ф88.9～101.6 | 3.5"～4" | ≤15 | 20 |
| ISDS5 | ISFS5 | Ф101.6～127 | 4"～5" | ≤15 | 20 |
| ISDS6 | ISFS6 | Ф127～152.4 | 5"～6" | ≤15 | 14 |
POWER SUPPLIES
|
Electric： Convenient power supply,Stable Performance Popular choiceElectric requirement：220-240V 1PH 50/60HZ Power：1.43KW Battery Motor Optional |

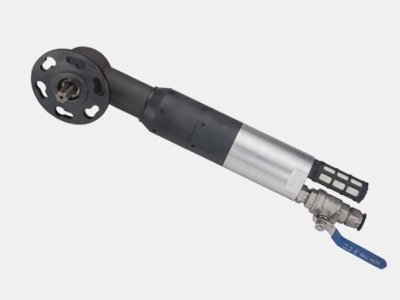

Pneumatic: Explosion Proof, Stable Performance Easy to maintenance Air requirement:1500-2000L/min @0.63-0.8Mpa Power：1.1HP or 2HP |
|
 |
Material：HSS-Co M42 and HSS M35,
Type：Sever，Bevel，
Angle：0°，30°，37.5°，
|
|
|
|
|
 |
|
|
|
|
