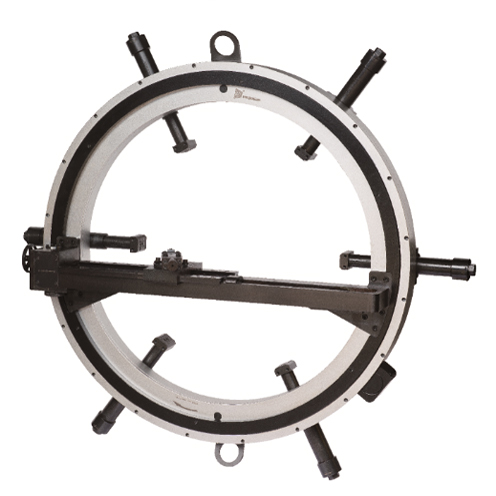

OD MOUNTED FLANGE FACING MACHINE
The OD mounted flange facing machine is designed for the Flange face, seal groove and serrated finish, weld prep. and counterboring.With the latest line and ball screw technology, the equipment adopts the modular design concept as a whole.
Range for flange OD150-3000mm
OVERVIEW
The OD mounted flange facing machine is designed for the Flange face, seal groove and serrated finish, weld prep. and counterboring.With the latest line and ball screw technology, the equipment adopts the modular design concept as a whole. Each step of design takes the field processing as the starting point. This machine is widely used in the flange connecting of Petroleum, chemical, natural gas and nuclear power. With the light weight, this machine is helpful for the on-site maintance.It ensures the high security and efficiency.
FEATURES
1、boring and milling tools are optional
2、driven motor：Pneumatic, NC driven, Hydraulic driven，
3、Working range 0-3000mm，Clamping range 150-3000mm,
4、light weight, easy to carry, fast installation and easy to use；
5、Stock finish, smooth finish, gramophone finish, on flanges, valve seats and gaskets.
6、High quality finish can be achieved. The feed of cut is automatic from the o/d. inwards.
7、Standard stock finishes carried out with step: 0.2 - 0.4 -0.6 - 0.8 mm.
SPECIFICATION
| Model | Clamping range | Working range | Tool stroke | Rotating | ||
| Pneumatic | Electric | Hydraulic | OD mm | mm | mm | rpm |
| AYO-300 | -- | -- | Ф50-300 | Ф50-300 | 35 | 28 |
| AYO-500 | SKO-500 | HYO-500 |
Ф150-500 |
Ф100-500 |
≤110 | 34 |
| AYO-1000 | SKO-1000 | HYO-1000 |
Ф500-1000 |
Ф200-1000 |
≤110 | 24 |
| AYO-1500 | SKO-1500 | HYO-1500 |
Ф1000-1500 |
Ф300-1500 |
≤110 | 23 |
| AYO-2500 | SKO-2500 | HYO-2500 |
Ф1500-2500 |
Ф1000-2500 |
≤110 | 23 |
| AYO-3000 | SKO-3000 | HYO-3000 |
Ф2500-3000 |
Ф1000-3000 |
≤110 | 23 |
Above parameters just for reference only, not acceptance criteria
POWER SUPPLIES
|
Pneumatic: |
|
|
|
NC: |
|
|
Hydraulic: Hydraulic requirement：28-50L/min @13Mpa Electric requirement: 380V 3PH 50/60Hz Rated Pressure：13MPa Rated flow:28L/min Max.Torque：380NM |
|
Material：Holder HSS ;
Insert: HSS-Co or Carbide
Type：Grooving，Facing
|
|
|
| Tool slide | Compound feed mechanism |
|
|
|
Sealing process |
milling |
