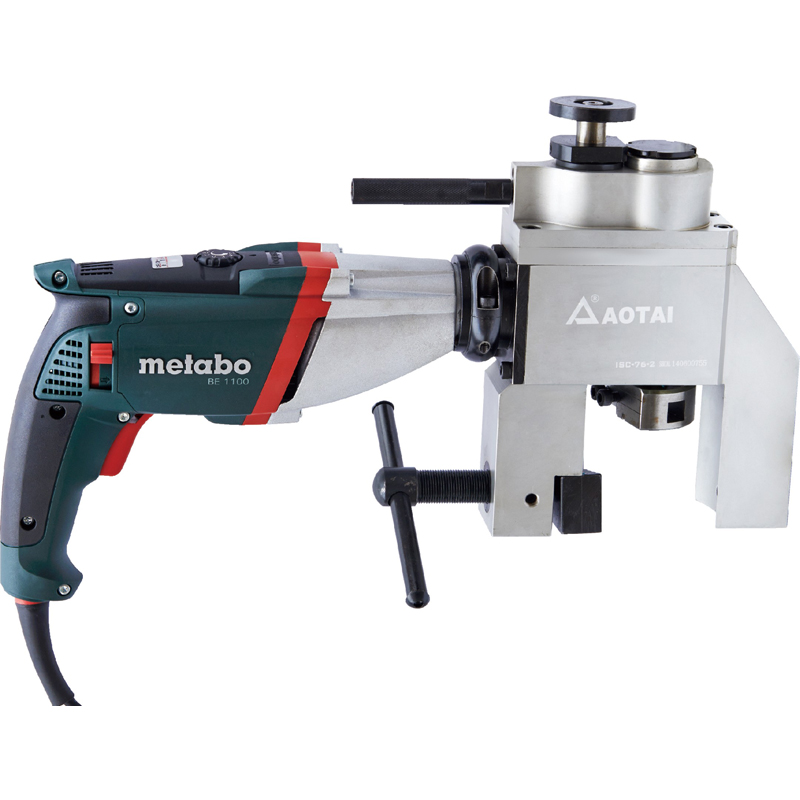

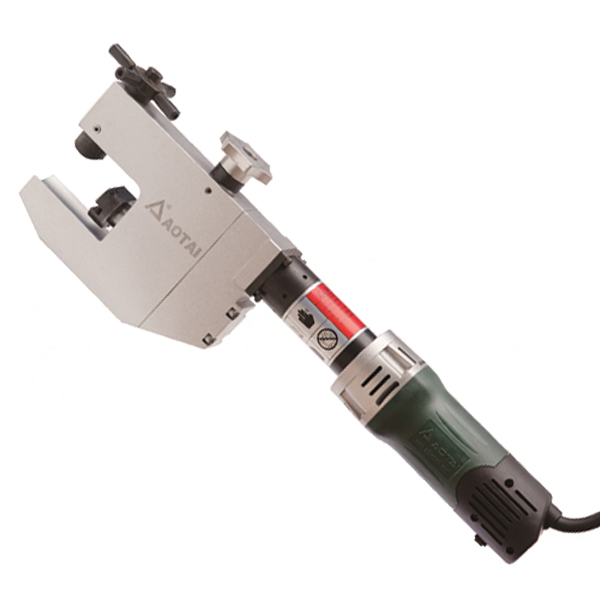

C-NARROW DESIGN PIPE BEVEING MACHINE
C-narrow design pipe beveing machine was designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping,easy to operate.
Range for pipe OD 8-108mm
OVERVIEW
C-narrow design pipe beveing machine was designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping,easy to operate. It was widely used in water wall, fins, boiler economizer, superheater, reheater, power plants and other industries, the single pipe and exhaust pipe facing and beveling
FEATURES
1、Cold cutting, without influence the material of the pipe
2、OD mounted,self centering,secured clamping,easy to operate
3、Aluminum body is light,suitable for working aloft.
4、5 models,working range:8-108mm
5、Optional special tool bit use for pipe inner thread6、Driven motor: Pneumatic and Electric
CAPABILTY
1、Pipe beveling
2、Inside beveling
3、Pipe facing

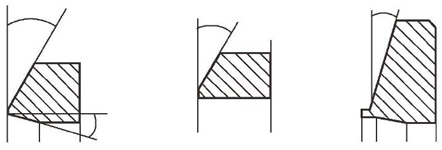

BEVELING SHAPE
SPECIFICATION
| Model |
Range |
thickness |
Rotating |
Tool stroke |
pipe length |
|
|
Electric |
Pneumatic |
OD mm |
mm |
rpm |
mm |
mm |
|
ISC-53 |

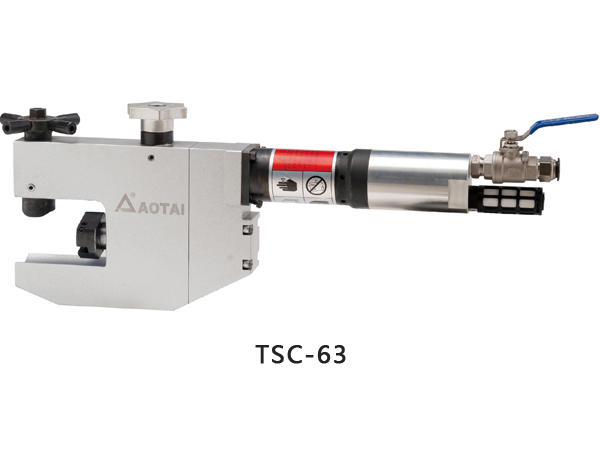

TSC-53 |
Ф8～53 |
≤8 |
0-58 |
11 |
≥60 |
|

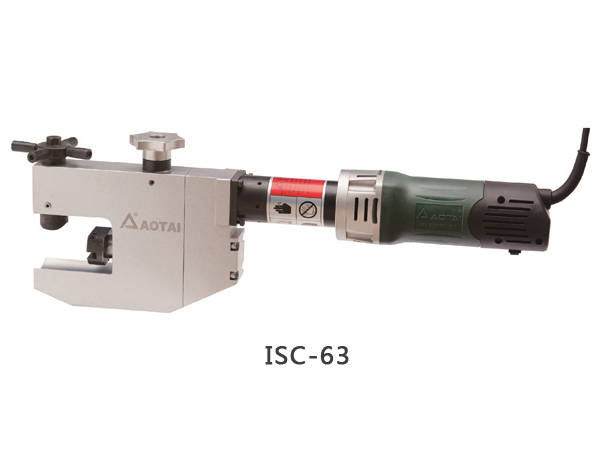

ISC-63 |
TSC-63 |
Ф20～63 |
≤12 |
0-55 |
11 |
≥70 |
|
ISC-73 |
TSC-73 |
Ф25～73 |
≤12 |
0-54 |
11 |
≥70 |
|
ISC-83 |
TSC-83 |
Ф30～83 |
≤12 |
0-43 |
11 |
≥70 |
|
ISC-108 |
TSC-108 |
Ф50～108 |
≤12 |
0-42 |
11 |
≥70 |
Above parameters just for reference only, not acceptance criteria
CLAMPING BLOCK
| Model | ISC/TSC-53 | |||||||
| Working range | Φ8 | Φ14 | Φ20 | Φ25.4 | Φ32 | Φ38 | Φ45 | Φ53 |
| Model | ISC/TSC-63 | |||||||
| Working range | Φ20 | Φ25.4 | Φ32 | Φ38 | Φ42 | Φ45 | Φ57 | Φ63 |
| Model | ISC/TSC-73 | |||||||
| Working range | Φ30 | Φ38 | Φ42 | Φ51 | Φ57 | Φ60 | Φ68 | Φ73 |
| Model | ISC/TSC-83 | |||||||
| Working range | Φ40 | Φ45 | Φ51 | Φ57 | Φ63 | Φ68 | Φ78 | Φ83 |
| Model | ISC/TSC-108 | |||||||
| Working range | Φ50 | Φ57 | Φ63 | Φ68 | Φ76 | Φ83 | Φ95 | Φ108 |
POWER SUPPLIES
|
Electric： Convenient power supply Stable Performance Popular choice Electric requirement：220-230V 1PH 50/60HZ Power：1.43KW |
Pneumatic: |
TOOLING
other beveling shape, angle and pipe material, please declare before order
Integrated tool
can be reused by grinding
Material：M42&M35
Standard supply

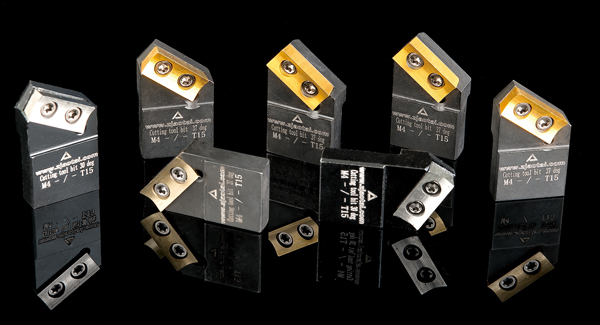

Insert tool
Insert same, different angle holder
HolderMaterial: HSS ;
Insert material: Cermet or Carbide
Optional
