OCM Stationary pipe cutting and beveling machine

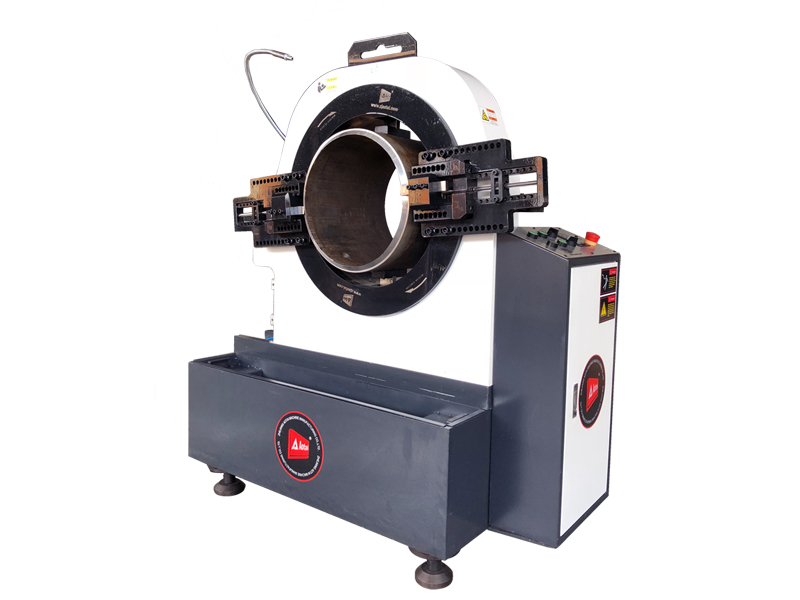

AOTAI OCM Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. electric up-down system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel
AOTAI OCM Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. electric up-down system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel, stainless steel and alloy steel pipes. Pipe length setting system and pipe conveying system are optional. advantage with high speed, high precision, high quality of cutting, easy to control. it is the key equipment for all kinds of pipe refabrication. suitable for cutting and processing pipe of oil, chemical, natural gas, nuclear power and other industry.
FEATURES
Cold cutting, don’t influence the pipe’s material
Electric clamping system, self-centering, precision solid
Automatic feed and manual feed can be optioned.
Built-in water cooling systems, increasing the life of machine and tools.
Varity of beveling shape: “U”,“V”,“J”, double “V”, compound bevels.
Cutting and beveling,and can be used for cutting, beveling, double beveling.
Machine up/down design, perfectly adapted to different diameter in the same pipe conveyer
CAPABILTY
Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counterboring
Grooving
BEVELING SHAPE
*other beveling shape, angle and pipe material, please declare before order
MODEL AND SPECIFICATION
Model |
Working Range |
Wall Thickness |
Rotating |
Motor Power |
||||
OD mm |
mm |
rpm |
Cutting |
Clamping kw |
Up/down kw |
Feeding kw |
||
OCM-325 |
OCM-325 |
50-325 |
5-25 |
0-30 |
3.0 |
0.75 |
0.75 |
0.75 |
OCM-610 |
OCM-610 |
273-610 |
6-30 |
0-15 |
7.5 |
0.75 |
1.5 |
0.75 |
Above parameters just for reference only, not acceptance criteria
Power requirement:380V,50-60Hz,3P
Up/down travel:300mm (some type no up/down)
Feeding travel:150mm
pipe length limit:200mm
Tool post quantity.:2 or 4
Angle deviation:±0.5
Vertical deviation:±0.5mm @300mm pipe OD
Feeding:mechanical automatic;
Retract:Manual;
TOOLING

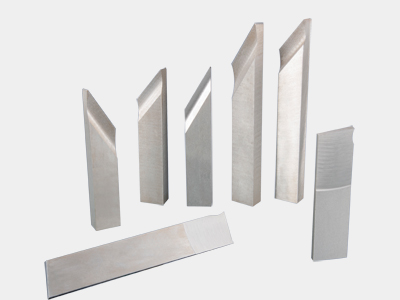

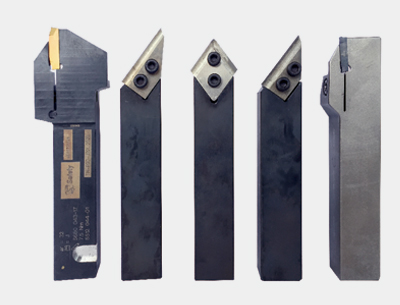

Options of form type and insert type tools
Available for cutting all thickness and material of pipe and beveling at any required angle.
Form Type |
Insert Type |
Material:M42 |
Material: Tool holder:40Cr ; Insert: CSS or Carbide |
|
|
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
CND Stationary pipe cutting and beveling machine

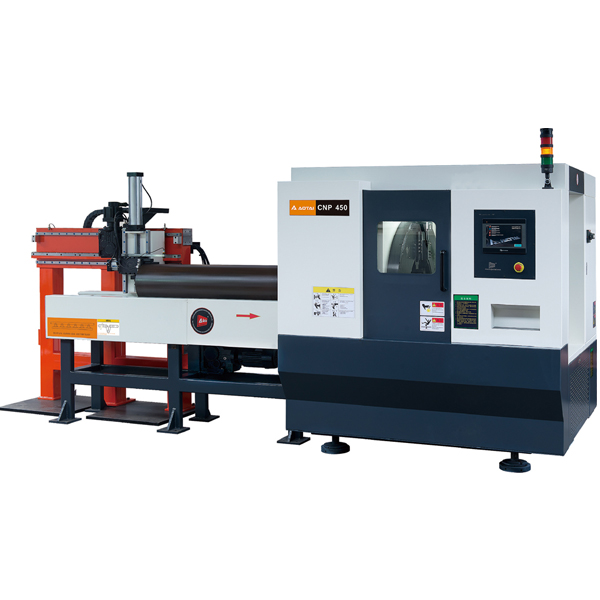

AOTAI CND Stationary pipe cutting and beveling machine is a practical and durable pipe cutting beveling machine. It was developed cutting and beveling for pipe prefabrication. Adopt variable frequency motor drive, electric clamping system, self-centering system. automatic feeding
Learn MoreOCF- CNC Pipe Beveling Machine
OCF was developed pipe end beveling High speed,It is new equipment of pipe prefabrication.It adopt SIEMENS CNC system, hydraulic clamping , machine up/down. It process different types bevel shape according to customer’s requirement: beveling U, V, J, Facing ,Counter-boring,etc.
Learn MoreKSD Portable-bench pipe cutting and beveling machine

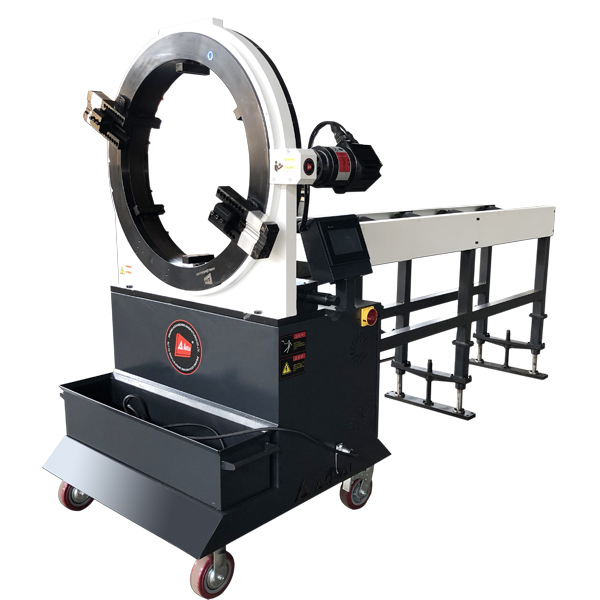

OSD/KSD Portable-bench pipe cutting and beveling machine is a portable and bench machine. It was developed cutting and beveling for pipe prefabrication. The main machine can be fixed on the bench in workshop, and it also can be used to field cutting and beveling with option our car type bench.
Range for pipe OD:20-720mm

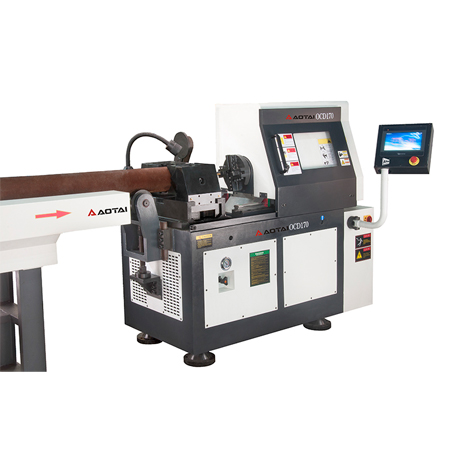

OCD High speed pipe beveling machine
