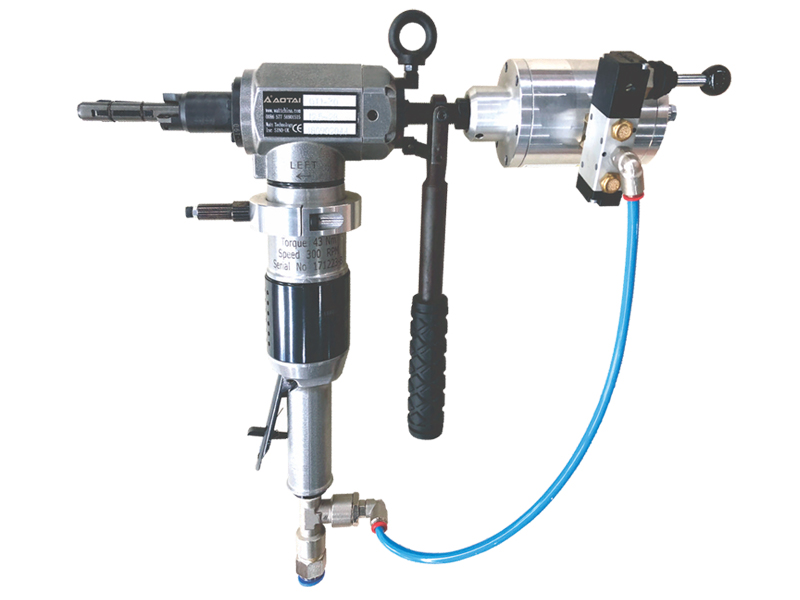

ATCM PIPE FACING MACHINE
ATCM pneumatic fast beveling machine is designed for bulk small dia. pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional. The machine is used to solve to face, bevel and remove the ending of all welding pipes. With the feature of light weight, easy operation, high efficiency, the machine is widely used for many lines of bulk pipe facing and beveling, eg.heat exchanger, water wall,power plant,pharmacy,brewing, refrigeration and so on.
Range for ID 12-40mm
ATCM pneumatic fast beveling machine is designed for bulk small dia. pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional. The machine is used to solve to face, bevel and remove the ending of all welding pipes. With the feature of light weight, easy operation, high efficiency, the machine is widely used for many lines of bulk pipe facing and beveling, eg.heat exchanger, water wall,power plant,pharmacy,brewing, refrigeration and so on.
FEATURES
1.Cold cutting, without influence the material of the pipes
2.ID mounted, fasting positioning clamping
3.Manual and auto feeding is optional.
4.Fast feeding and retracting ensure few minutes to facing.
5.Remove extra length of the pipe and weld seam, fast face and bevel pipes
6.Working range: ID 12mm-40mm. Customized working range requirement is acceptable.
7.Applicable to end facing of various grades of metal pipes CS,SS and alloy steel
Para Model |
ATCM-24 |
ATCM-48 |
Feeding |
Manual |
Manual |
Working range |
Φ12.7-24mm |
Φ28-48mm |
Feeding stoke |
20mm |
20mm |
Max thickness |
5mm |
5mm |
No-load speed |
300rpm |
300rpm |
Torque |
50Nm |
50Nm |
Power |
1.3HP |
1.3HP |
Air requirement |
1500-2000L/min @0.63-0.8Mpa |
1500-2000L/min @0.63-0.8Mpa |
Machine body Max width |
59mm |
59mm |
Weight |
7KG |
8KG |

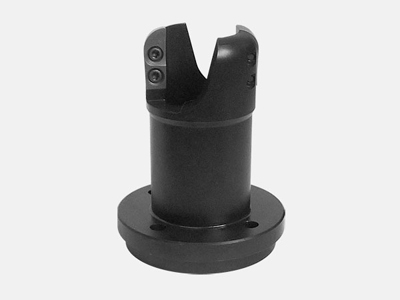

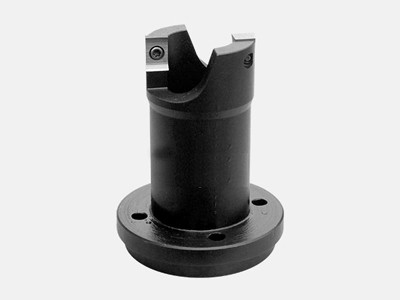

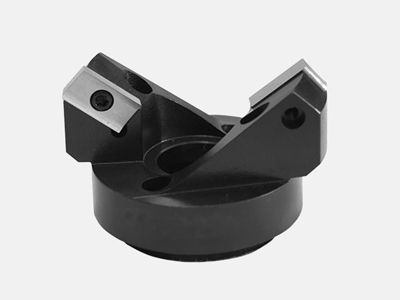

TOOLING
Other bevel angles and pipe material, please declare before order

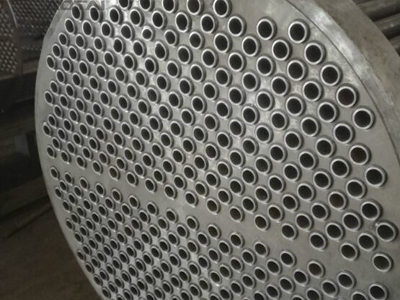

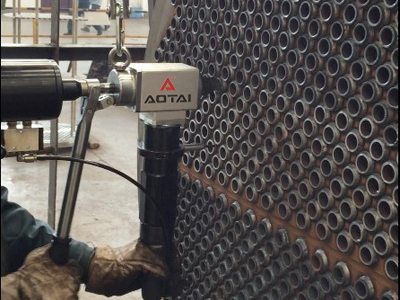

ONE SITE
