II -PIPE BEVELING MACHINE

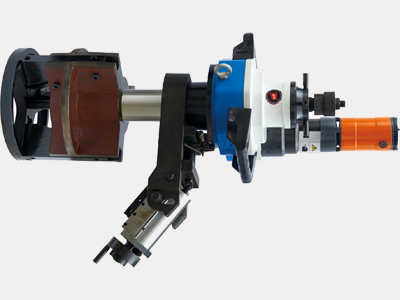

II-PIPE BEVELING MACHINE is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces.
Range for pipe ID 80-820mm
II-PIPE BEVELING MACHINE is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces.With the special structure designing, the tool stroke can be fine-turning. Auto-feeding and Manual –feeding can be easily and freely chosen. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.
FEATURES
1、Tool stoke can be fine-turning
2、Beveling angel adjustable： 0-30deg
3、Cold cutting, without influence the material of the pipe
4、Manual feeding and Auto feeding can be easily and freely exchanged
5、Varity of beveling shape: U, Single-V, double-V,J beveling
6、4 model, range for pipe ID: 80mm-820mm
7、Driven motor: Pneumatic and Electric, Servo motor and Hydraulic optional
CAPABILTY
1、Pipe end beveling
2、Inside beveling
3、Pipe facing
4、Compound beveling
BEVELING SHAPE
|
Model |
Working range （ID mm） |
thickness （mm） |
power （kw） |
Rotating speed （rpm） |
|
|
Electric |
Pneumatic |
||||
|

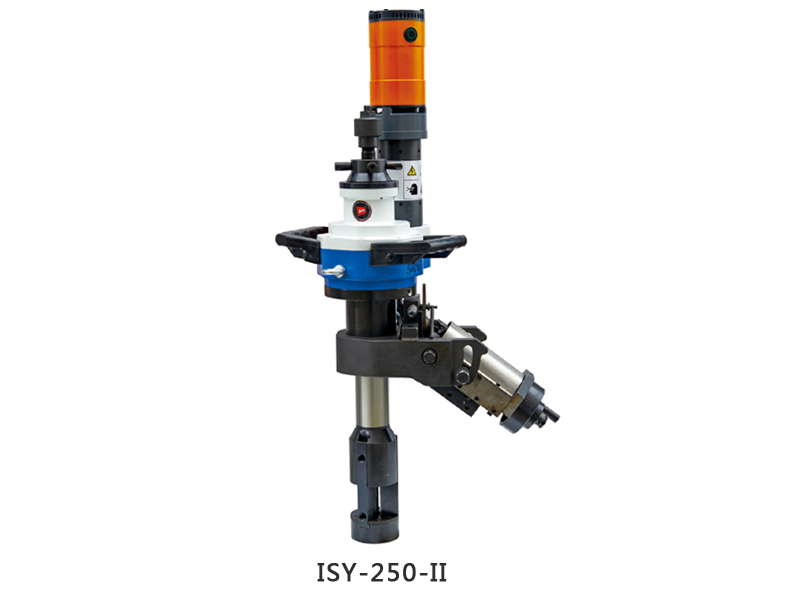

ISY-250-II |
TCM-250-II |
Ф80-240 |
≤75 |
1.4 |
16 |
|

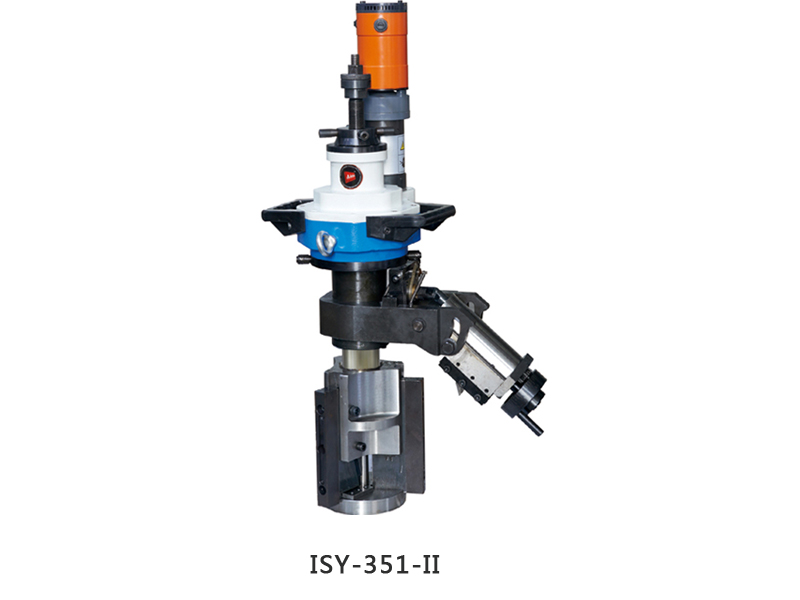

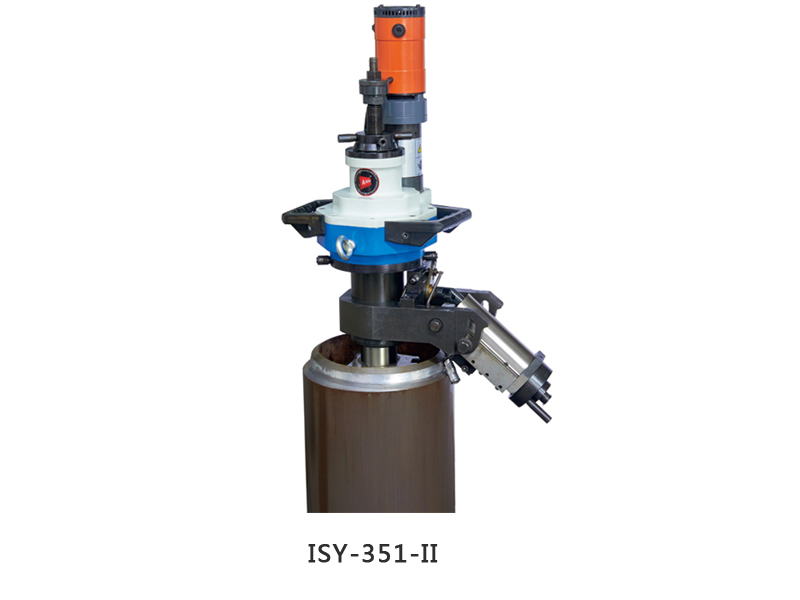

ISY-351-II |
TCM-351-II |
Ф150-330 |
≤75 |
1.4 |
10 |
|

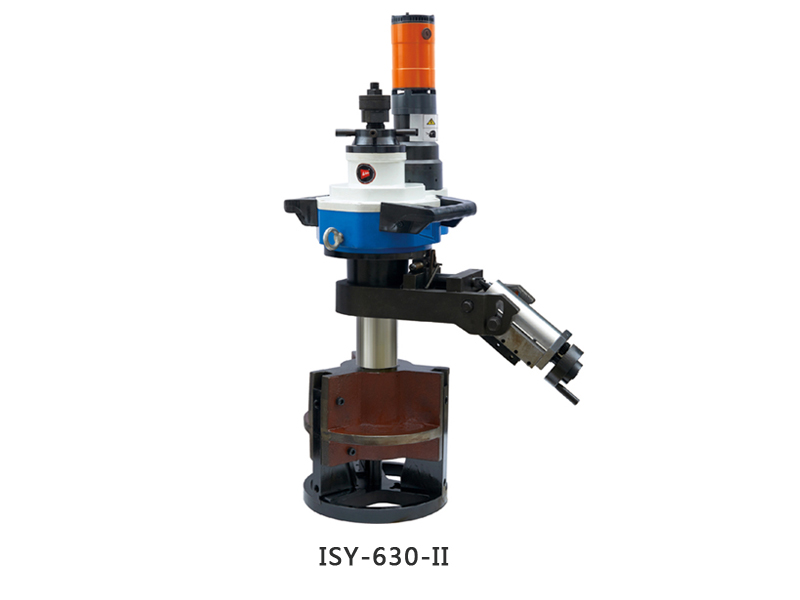

ISY-630-II |
TCM-630-II |
Ф300-600 |
≤75 |
1.4 |
6 |
|
ISY-850-II |
TCM-850-II |
Ф600-820 |
≤75 |
2.0 |
6 |
Above parameters just for reference only, not acceptance criteria
POWER SUPPLIES
|
Electric：
|
Pneumatic: |
|
|
|
Servo motor and hydraulic driven optional for special material and high efficient

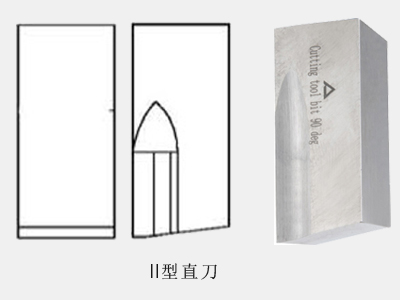

Standard tool: 3PCS straight tool, beveling angle adjusted by tool post
other beveling shape, angle and pipe material, please declare before order

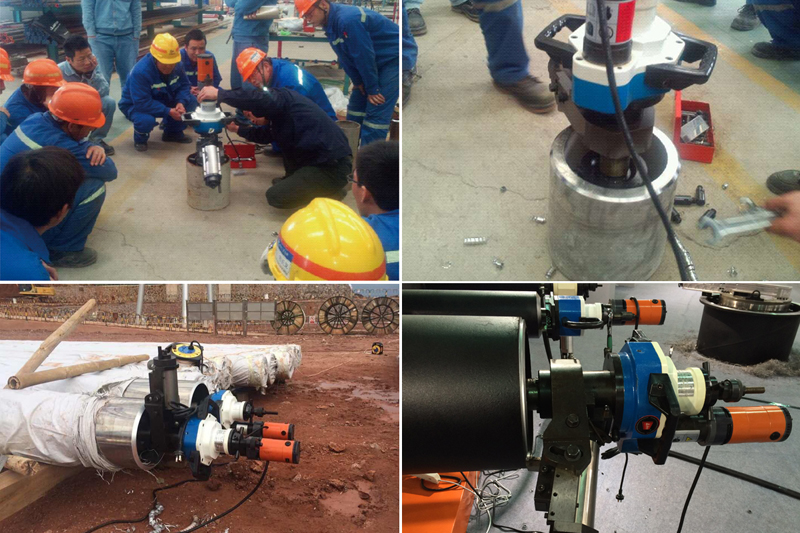

ON-SITE PROCESS
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Heavy duty pipe beveling machine
AOTAI Heavy duty pipe beveling machine is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces.
Range for pipe ID 800-2050mm
ATCM PIPE FACING MACHINE

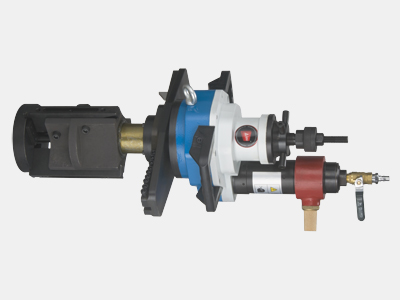

ATCM pneumatic fast beveling machine is designed for bulk small dia. pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional. The machine is used to solve to face, bevel and remove the ending of all welding pipes. With the feature of light weight, easy operation, high efficiency, the machine is widely used for many lines of bulk pipe facing and beveling, eg.heat exchanger, water wall,power plant,pharmacy,brewing, refrigeration and so on.
Range for ID 12-40mm
Y-PIPE BEVELING MACHINE
The ID mounted Y-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts “Y” shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Range for pipe ID 60-820mm
T-PIPE BEVELING MACHINE
The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts “T” shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Range for pipe ID 12.5-330mm
