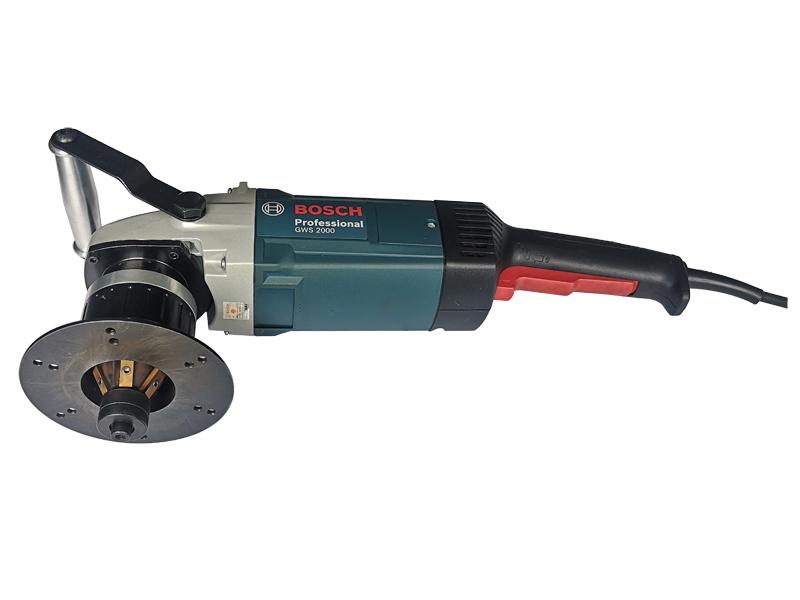

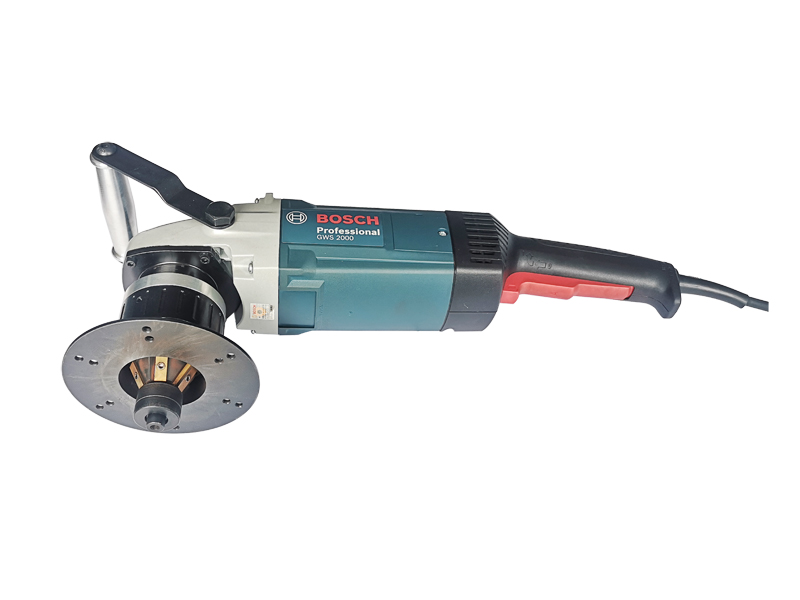

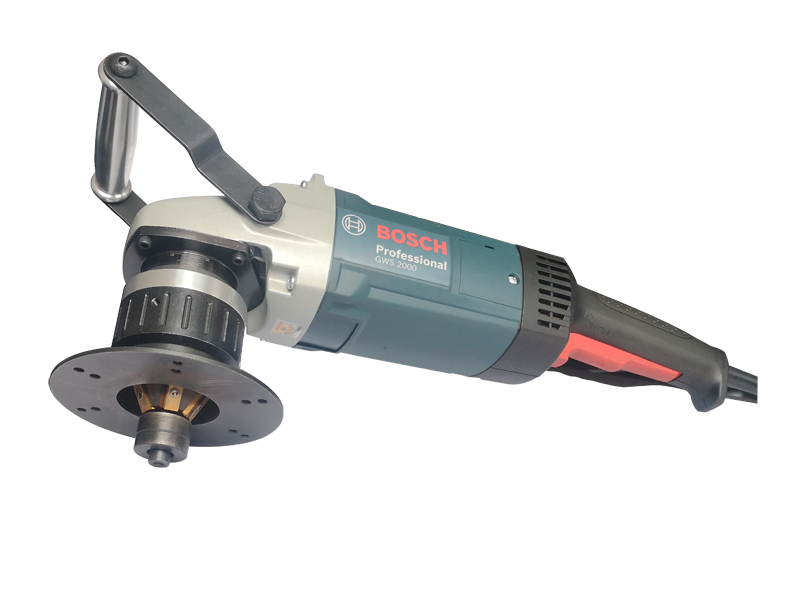

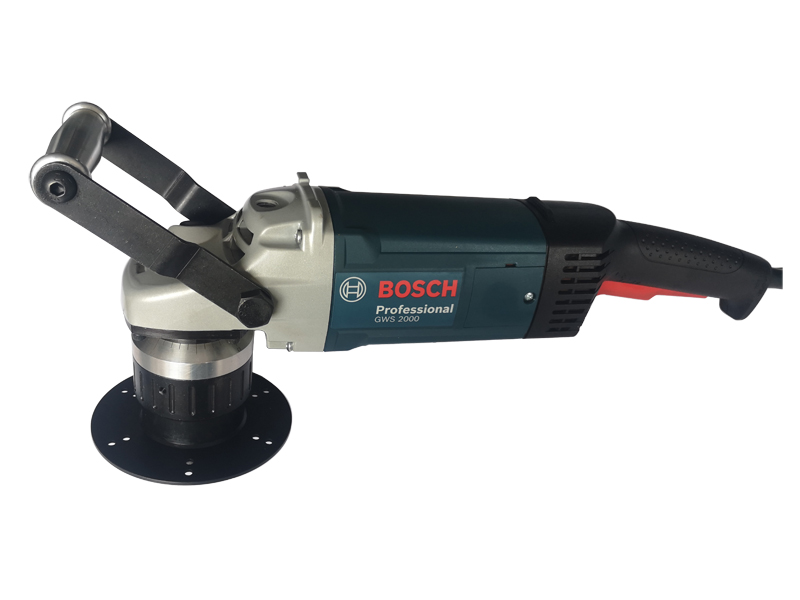

K15 Flexible Plate Beveling Machine
K15 flexible plate beveling machine designed for metal plate and pipe prep-welding. to beveling and chamfering.It is suitable for regular curved surfaces ,such as outer circle, inner hole, waist hole, etc. and irregular inner and outer cavity edges. The chamfering of the side is applicable to the chamfering of some curved edges of large workpieces,
K15 flexible plate beveling machine designed for metal plate and pipe prep-welding. to beveling and chamfering.It is suitable for regular curved surfaces ,such as outer circle, inner hole, waist hole, etc. and irregular inner and outer cavity edges. The chamfering of the side is applicable to the chamfering of some curved edges of large workpieces, so it can also be used for the beveling and deburring of the inner hole and the plate of the metal pipe. The product is compact, light and easy to operate, and it has many Functionality and flexibility, which can greatly improve work efficiency, increase effective working hours, reduce costs, and reduce the labor intensity of employees, making it an attractive device.
Features
1.Portable milling, easy to operate;
2.Beveling shape:K, V, X, Y ;
3.Suitable for plate, pipe, H-beam, angle Iron, beveling and deburring of inner and outer circles;
4.Compact structure, small size, light weight, safe operation in complex environments and shaped spaces;
5.Suitable for carbon steel, stainless steel, alloy steel, cast iron, and hard plastic;
SPECIFICATION
Model | K15 | ||
Bevel angle | 45° (standard tool);30°,37.5°,50°,60°(optional tool) | ||
Electric suppy | AC 220V 50HZ 1P | Motor power | 2.0KW |
Motor speed | 8500rpm | Max speed | 3000mm/min |
Max land width | 15mm | Thickness | ≥3mm |
Single depth | 5mm | Bevel pipe ID | ≥25mm |
Quantity of tool | 5pcs/set | Tool material | Milling cutter |
Machine weight | About 8.5KG | Packing | wooden case |
Above paraments just for reference only,not acceptance criteria.

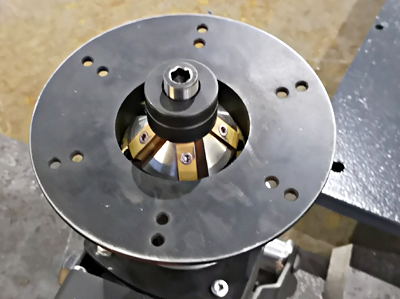

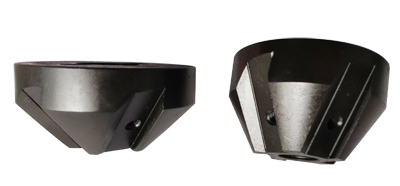

Tooling
Different angles of the groove, matching different tool chucks
45° (standard); 30°, 37.5°, 50°, 60° (optional)
Unique blade size for tool holders with different angles
