Cutting angles and tooth choice

Date: 2018-10-09        Clicks: 8177

Cutting angles and tooth choice
tooth choice and the correct cutting angle are keys to obtaining the best results from your saw blades:this choice depends on the material and the section that needs to be cut . the following informatioin has been rrovided by our techinicians and is the result of many years experience.

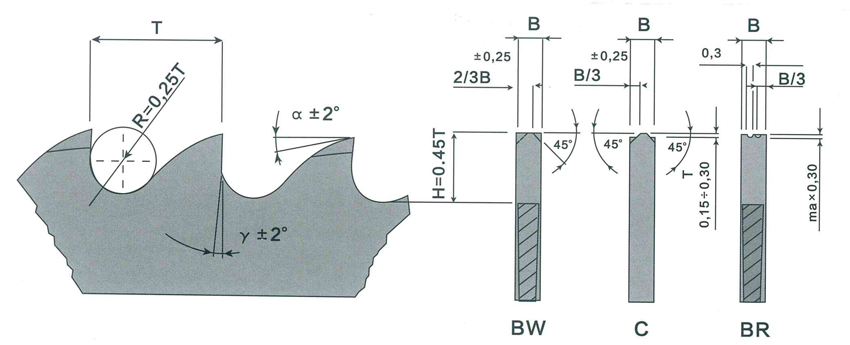

B

sawblade thickness

T

tooth pitch

H

Tooth height

R

gullet diameter

Y

rake angle

A

rellief angle

S

Thickness of piece



The circular saw blades are manufactured with the following standard angles:

HSS-DMo5    HSS-Co5

Y=18±2º     y=12º±2º

A=10º±2º     a=8º±2º

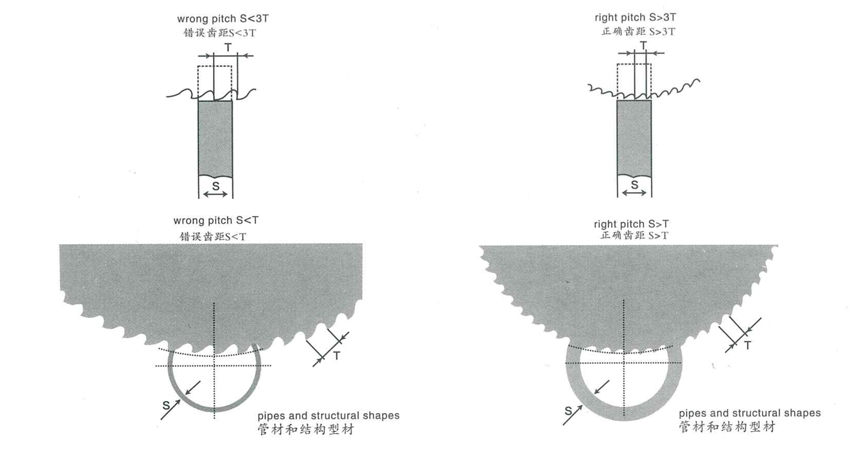

Pitch choice
Pitch choice in order to choose the right number of teeth,it is important to consider the section that needs to be cut and the matrial.
The pitch is correct when the teeth to section rtio is at least 1:3 for solid bars and 1:1 for pipes and structural shapes.

HSS-Dmo5 cutting edges

HSS-Co5 cutting edges

Material

yº

aº

Material

Yº

aº

Steel<700n/mm

18º

10º

Stainless steel<700n/mm

12º

8º

Steel<700n/mm

15º

8º

Steel(》800n/mm

15º

8º

Stainless steel

12º

8º

Inconel

12º

8º

Brass

15º

15º

Titanium

12º

8º

Copper

20º

10º







bronze

12º

10º







aluminium

25º

10º







castiron

10º

6º







Zinc alloy

12º

8º






for specific applions the angles recomended by our technicians are shown above.
