PFM PIPE FACING MACHINE
PFM pipe facing machine was designed for pipe end facing and beveling with small diameter and thin-wall thickness. OD mounted, equipped with special collect and tool, easy installation, fast and efficient processing.
Range for pipe OD 3-110mm
PFM pipe facing machine was designed for pipe end facing and beveling with small diameter and thin-wall thickness. OD mounted, equipped with special collect and tool, easy installation, fast and efficient processing. It is small in size, light in weight and easy to carry. It is suitable for facing and beveling of pipe end in electronics, pharmaceutical, food, beverage, solar energy, semiconductor and chemical industry.
FEATURES
1、Auto feeding, high precision
2、One collect clamp one size pipe
3、Driven by electric motor or battery
4、Cleaning cutting, no water and oil
5、2 models, working range for pipe OD 3mm-110mm
6、Pipe end asolute vertical,no deformation,no burrs,perfact weld-prep
7、Fast install, fast cutting, one facing only need a few seconds
8、Can be used for alloy steel, carbon steel, stainless steel and aluminum
CAPABILTY
1、Pipe beveling
2、Pipe facing
|
Item Model |

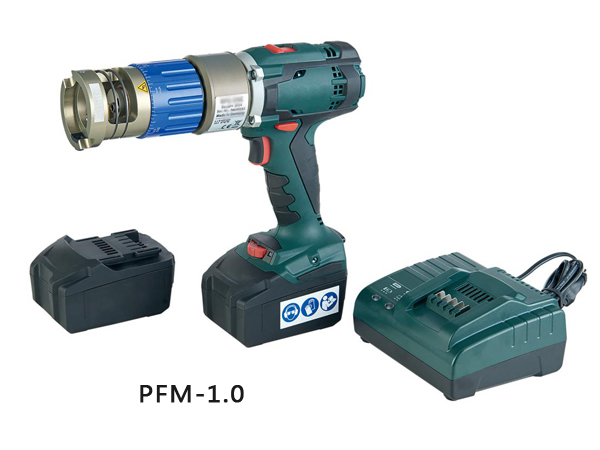

PFM-1.0 |
PFM-1.0A |

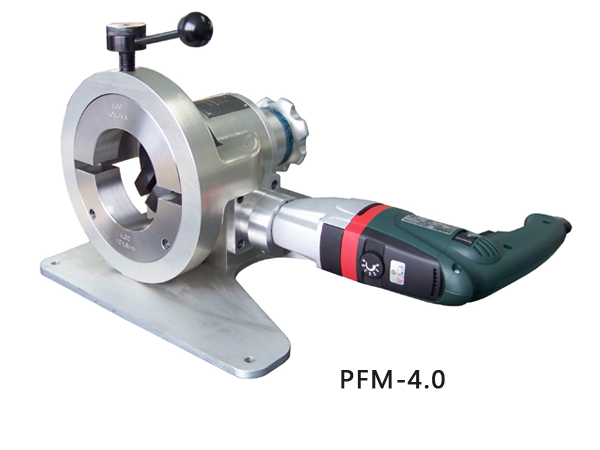

PFM-4.0A |
|
Drive |
Battery |
Electric motor |
Electric motor |
|
Range |
Φ3-25.4mm |
Φ3-25.4mm |
Φ12.7-110mm |
|
Tool stroke |
5mm |
5mm |
5mm |
|
thickness |
0.5-3mm |
0.5-3mm |
0.5-5mm |
|
No-load rotating |
300rpm |
300rpm |
300rpm |
|
Voltage |
14.4v |
220v |
220v |
|
Power |
- |
1.3kw |
1.3kw |
|
Net Weight |
2.3kg |
4.8kg |
19kg |
Standard with four diameter clamping block, more specifications please inquire
Above parameters just for reference only, not acceptance criteria

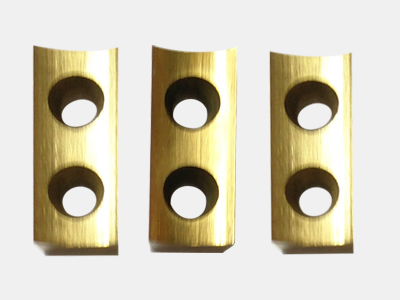

TOOLING
2pcs facing tool
Material：Cermet or Carbide
Beveling tool optional
