Hydraulic motor and hydraulic power packs
With more than 20 years' research and production of the portable machines,such as  pipe cutting &  beveling machine and the Flange facing machine, AOTAI takes lead in applying hydraulic drive and servo motor to these portable machines, realizing remote control and ensuring the machine more powerful and stable. It is warmly welcomed by the end users and copied by other manufacturers.

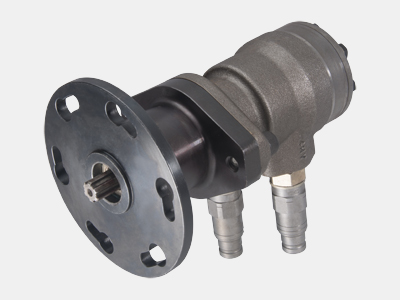

Hydraulic motor

Model:  : MBR-100P2A,125, 160, 200
Rated Pressure: 13Mpa
Rated flux:28L/min
Torque:260Nm
Out-put speed : 280rpm
Time range:0-20m/min

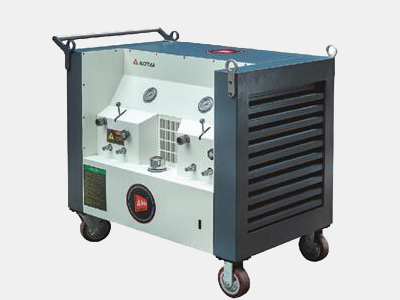

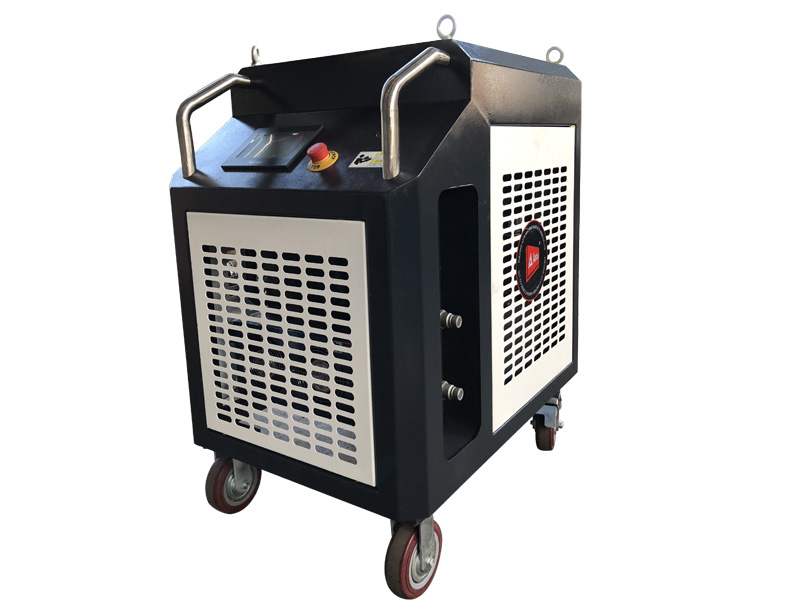

Hydraulic power pack

Standard:YYZ-XK-19E

Suitable for all working condition
Rated Pressure:13MPa
Rated flux:28L/min
Electric power:7.5KW,380V-3ph,50Hz
Oil capacity:120L
Hydraulic oil:Winter 32#, Summer 46#

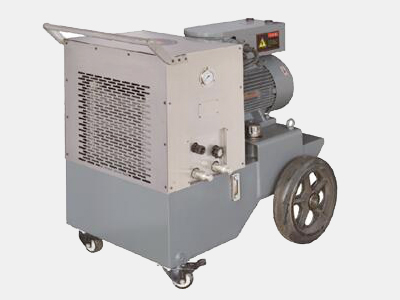

Anti-explosion:YYZ-EX-25E

Suitable for Anti-explosion working condition
Rated Pressure:13MPa
Rated Pressure:50L/min
Anti-explosion Power:15KW,380V-3ph,50Hz,
Oil capacity:80L
Hydraulic oil:Winter 32#, Summer 46#



Duplex pump:YYZ-EX-DP25X

Double power output, can drive 2 hydraulic motor at the same time
Rated Pressure:20MPa
Rated Flux:50L/min
Electric power:15KW,380V-3ph,50Hz
Oil capacity:150L
Hydraulic oil:Winter 32#, Summer 46#



Diesel power:DPU23-50E

Designed for on-site working situation. The machine is with stronger power,

 driven by the diesel motor, and supplied with single or double output. T

he performance is much more stable
Rated Pressure:15MPa
Rated Flux:50L/min
Oil capacity:150L
Hydraulic oil:Winter 32#, Summer 46#
