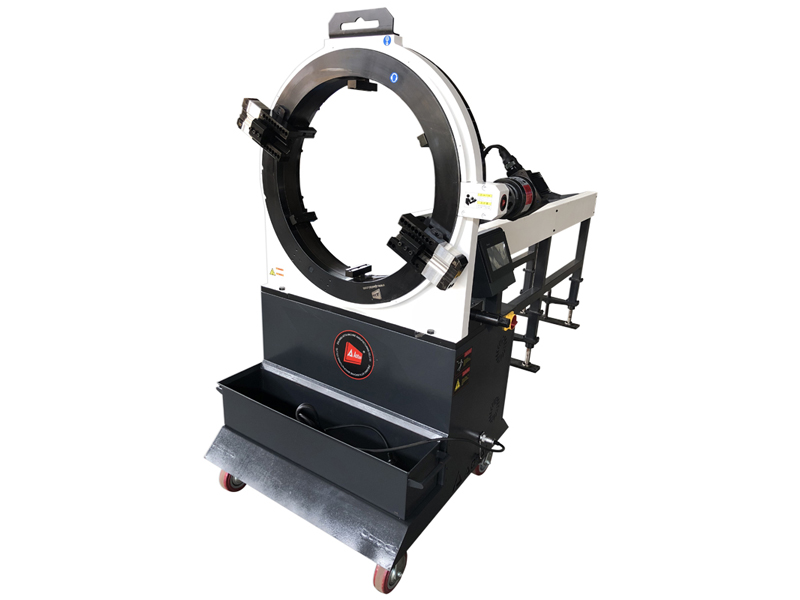

KSD Portable-bench pipe cutting and beveling machine

OSD/KSD Portable-bench pipe cutting and beveling machine is a portable and bench machine. It was developed cutting and beveling for pipe prefabrication. The main machine can be fixed on the bench in workshop, and it also can be used to field cutting and beveling with option our car type bench.
Range for pipe OD:20-720mm

online service

Tel:0086-577-86808798

OVERVIEW

OSD/KSD Portable-bench pipe cutting and beveling machine is a portable and bench machine. It was developed cutting and beveling for pipe prefabrication. The main machine can be fixed on the bench in workshop, and it also can be used to field cutting and beveling with  option our car type bench. Adopt variable frequency motor or servo motor drive, self-centering clamping system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel, stainless steel and alloy steel pipes. New design, easy to control, the cutting and beveling system can be changed to orbital cutting system or welding system. it will become a orbital pipe cutting machine or pipe welding machine.


FEATURES

1、8 models are available in pipe OD:20-720mm
2、Cold cutting, don’t influence the pipe’s material

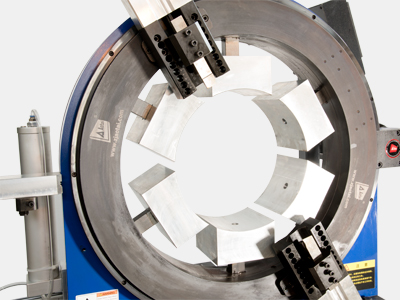

3、Self-centering clamping with multi point jaws
4、Automatic feed and manual feed can be optioned
5、one-piece body,makes it possible to high speed cutting
6、Varity of beveling shape: “U”,“V”,“J”, double “V”, compound bevels
7、Cutting and beveling,and can be used for cutting, beveling, double beveling
8、Change the cutting and beveling system can be change to orbital pipe cutting system
9、Change the cutting and beveling system can be change to pipe welding system

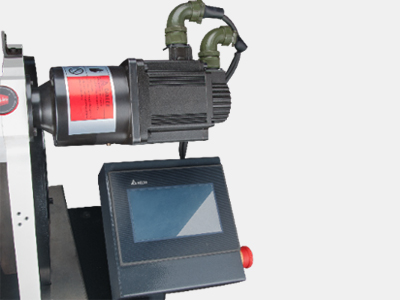

10、KSD model driven by Servo motor, PLC control system, and with touch screen controller


CAPABILTY

Pipe cut off

Pipe end beveling

Pipe facing

Cutting and beveling

Compound beveling

Counterboring

Grooving

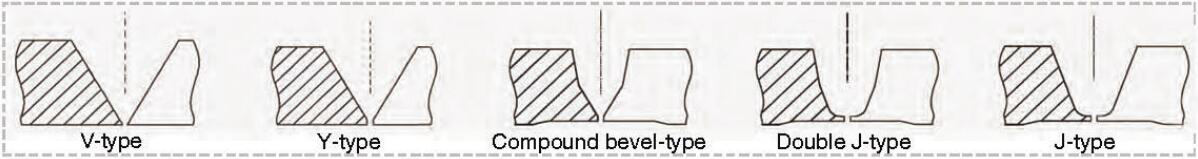

BEVELING SHAPE


*other beveling shape, angle and pipe material, please declare before order


SPECIFICATION

Model Working Range Wall Thickness Rotating Motor Power
Electric NC OD mm mm rpm kw
OSD-120 KSD-120 Ф20-120 ≤20 0-33 1.43
OSD-170 KSD-170 Ф35-170 ≤30 0-23 1.43
OSD-220 KSD-220 Ф76-220 ≤30 0-18 1.43
OSD-320 KSD-320 Ф168-320 ≤30 0-14 1.43
OSD-420 KSD-420 Ф273-420 ≤30 0-14 1.43
OSD-520 KSD-520 Ф377-520 ≤30 0-13 2.0
OSD-620 KSD-620 Ф457-620 ≤30 0-13 2.0
OSD-720 KSD-720 Ф559-720 ≤30 0-13 2.0
Above parameters just for reference only, not acceptance criteria


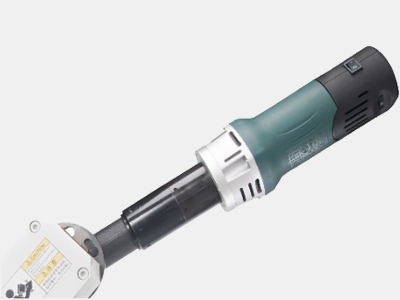

POWER SUPPLIES

OSD Model: KSD model:
Power requirement:220V,50-60Hz,1P
Power:1.43KW or 2.0KW
Servo motor, NC control
Power requirement:220V,50-60Hz,1P
Power:2.0KW




TOOLING

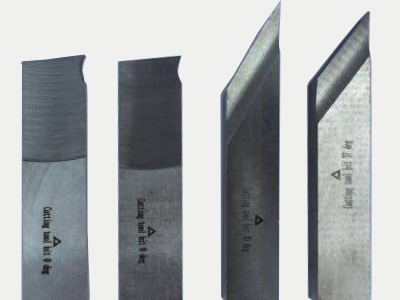

Options of form type and insert type tools
Available for cutting all thickness and material of pipe and beveling at any required angle.
Form Type Insert Type

Material:M42 or M35
Kinds:Cut off,beveling,Double beveling,Compound beveling
Angle:0°,30°,37.5°,double 30°/37.5°,37.5°+10°
Length:90mm,150mm,200mm

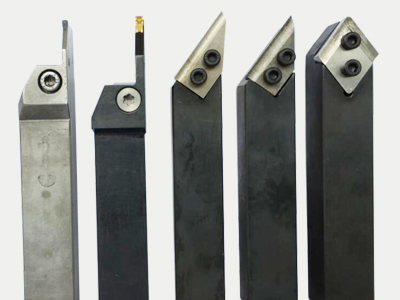

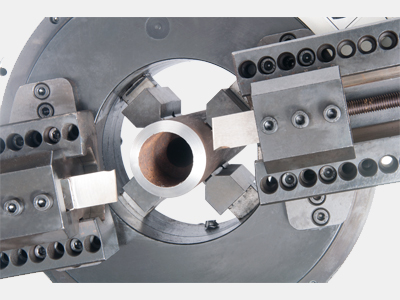

Material: Tool holder:40Cr ; Insert: CSS or Carbide
kinds:Cut off,beveling,Double beveling,Compound beveling
Angle:0°,30°,37.5°,double 30°/37.5°,37.5°+10°

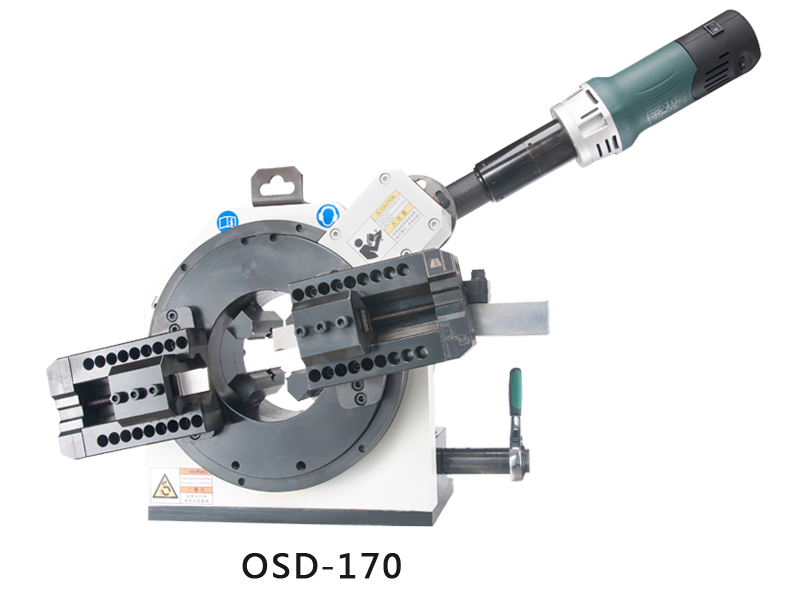

OSD



KSD
