PIPE HOLE CUTTER

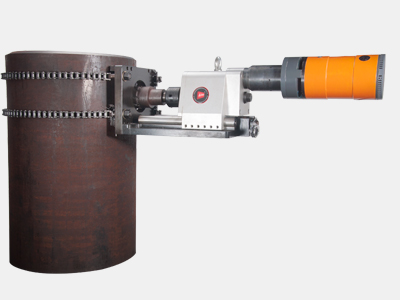

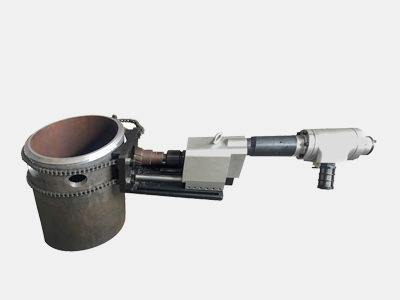

Aotai pipe hole cutter, designed for industrial pipe drilling and boring. Tension chain locking positioning is adopted to install on the outside wall of the pipe. Can be operated at any position and Angle.

OVERVIEW

Aotai pipe hole cutter, designed for industrial pipe drilling and boring. Tension chain locking positioning is adopted to install on the outside wall of the pipe. Can be operated at any position and Angle. Equipped with high power motor, strong power, high output torque, meet thick wall pipe drilling. Small volume, light weight, simple operation, the essential production equipment of Industrial boilers, pharmaceutical machinery, solar power, water supply and drainage, chemical engineering, nuclear power and other industries fields, pipe drilling operation in the process of transformation.


FEATURES

1.Cold drilling, don't change the material of pipe.

2.Drilling hole of high precision, no burr to facilitate welding;

3.Hollow drill bits on the market are versatile

4.maximum hole depth up to 60 mm, is the most effective tools for heavy duty pipe drilling;

5.electric and pneumatic drive optional, use more widely


SPECIFICATION
Model
Pipe OD
mm
Hole size
mm
Drilling depth
mm
Power

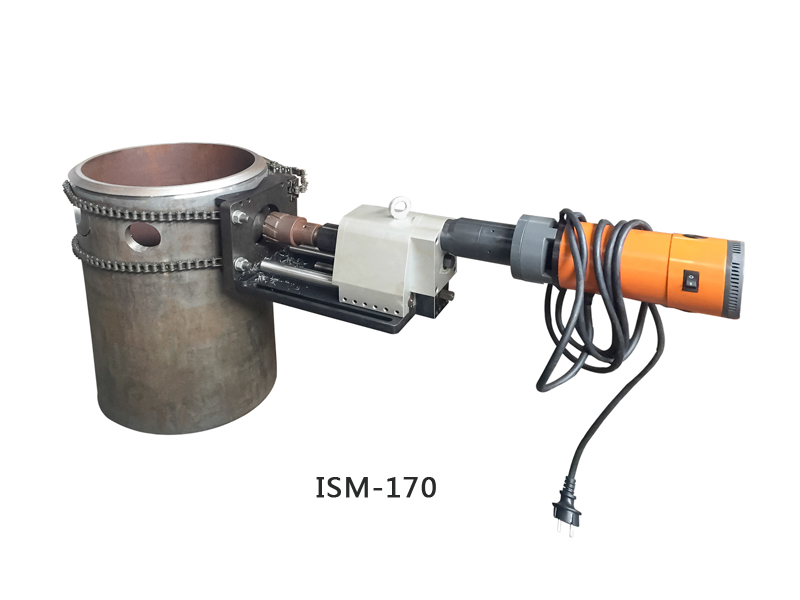

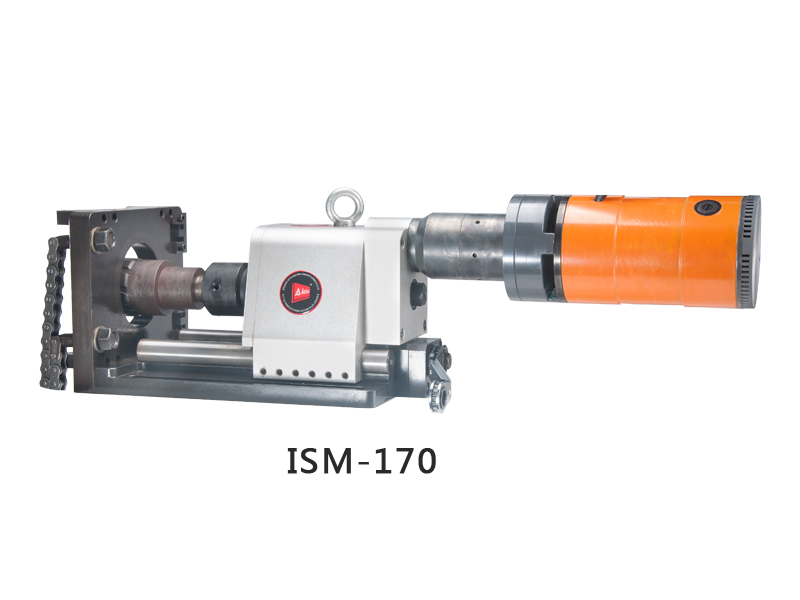

Electric ISM-170 ≥Φ140 6-114 5-60 2.0KW

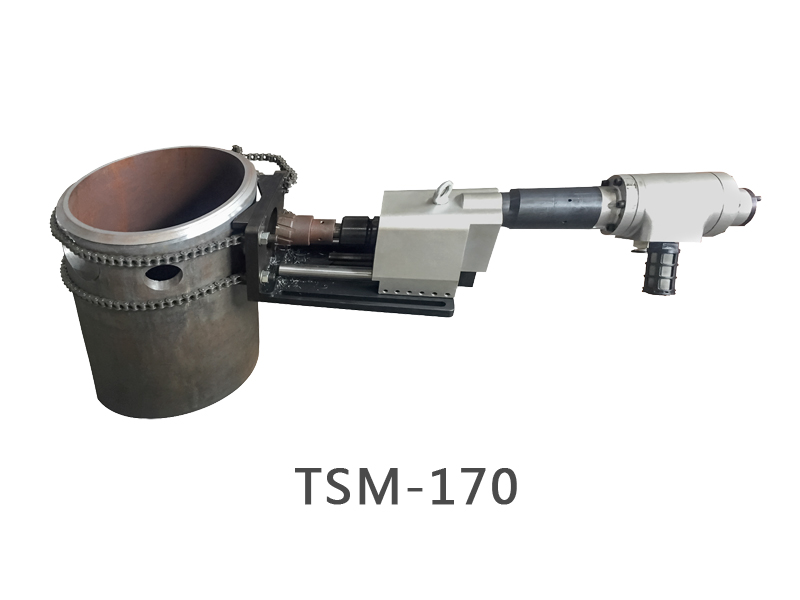

Pneumatic TSM-170 ≥Φ140 6-114 5-60 3HP

Different drilling tool size drill different hole, please declare before order

Above parameters just for reference only, not acceptance criteria



POWER SUPPLIES

Electric:
Convenient power supply
Stable Performance
Popular choice
Electric requirement:220-230V 1PH 50/60HZ
Power:2.0KW

Pneumatic:

 Explosion Proof

Stable Performance
Easy to maintenance
Air requirement:1500-2000L/min @0.63-0.8Mpa
Power:3HP

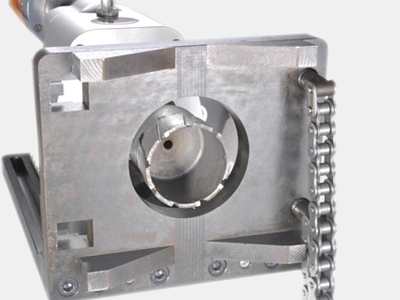

TOOLING



This machine is suitable for most brands of hollow drill

Please state the specification and material of hole drilling

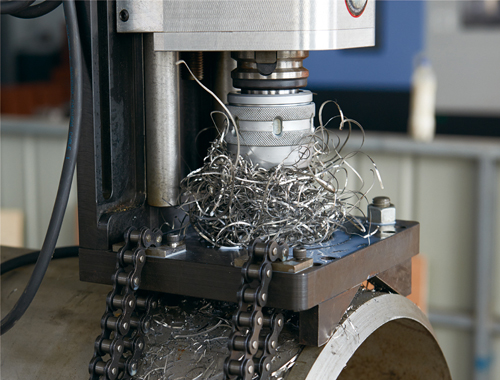

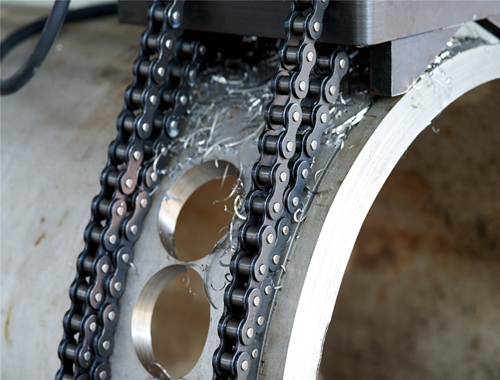

ON-SITE PROCESS
